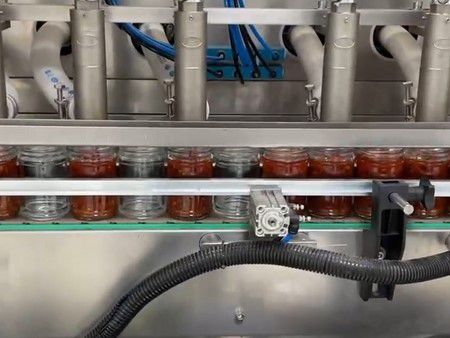

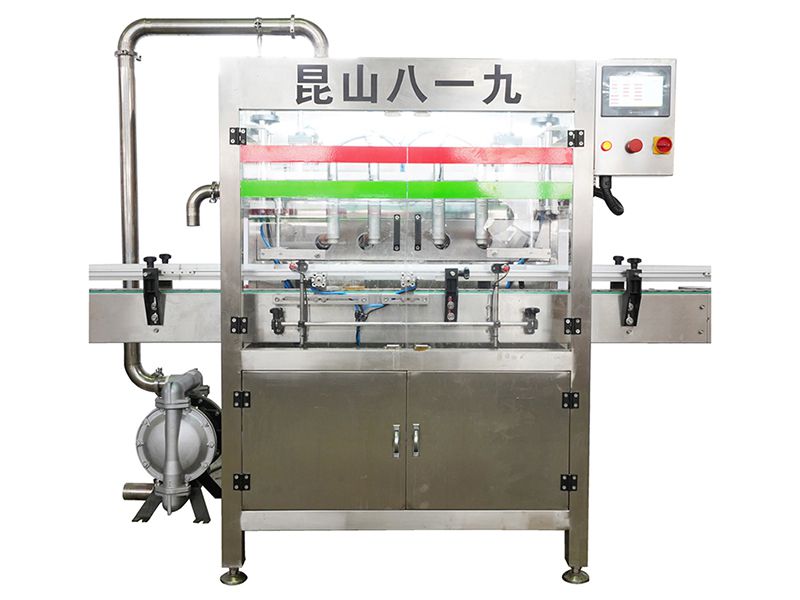

The sauce filling machine can work with sauces of various viscosity. With stainless steel-constructed frames and contact parts and high-quality components, the filling machine is suitable for the filling of liquids of higher viscosity than sauces and low-viscosity water-thin liquids, such as ketchup, hot sauce, soy sauce.
A wide range of bottled sauce, such as ketchup, hot sauce, soy sauce.
Our sauce filling machine is mainly used in food processing industry, especially for sauce, dressings, etc.

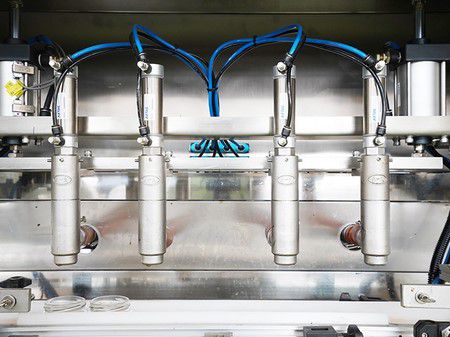

The sauce filling machine uses a cylinder and a piston to create a highly accurate volumetric fill. Different fill levels can be achieved by lengthening or shortening the stroke of the piston, and the weight of filled sauce will be consistent from cycle to cycle.
Stainless steel frame, storage box, piston cylinder, piston, filling head, PLC, touch screen, photoelectric sensing system, conveyor.
| Filling speed | 25-30bpm (6 heads) (the number of filling heads can be increased or decreased to adapt to required productivity) |
| Filling capacity | 100-400ml |
| Power supply | 380V/50Hz, 1.2-2.0 kW |
| Air pressure | 0.4-0.6Mpa |
| Dimensions | 2000×1300×1900mm |
Filling machines are pivotal equipment across many industries, including food and beverage, pharmaceuticals, and cosmetics. These machines ensure high precision and flexibility in operations, accurately measuring and dispensing bulk items into containers efficiently.
There is a broad array of filling machines tailored to meet different needs, such as manual, semi-automatic, and automatic liquid filling machines, rotary fillers, piston fillers, and in-line liquid filling machines, each designed for specific applications and operational scales.
Liquid filling machines are versatile, capable of handling a wide range of products. Common applications include filling water, oils, alcoholic beverages, syrups, creams, and more, catering to the specific needs of various industries.
Powder filling machines are integral to the food processing, cosmetics, and pharmaceutical industries, offering precise weighing and filling solutions for products like sugar, coffee, pharmaceuticals, and other powdered or granulated materials.
Paste filling machines are specially designed for high-viscosity products and are widely used in the cosmetics and household products sectors. These machines are ideal for filling creams, emulsions, shampoos, automotive waxes, and similar viscous materials, ensuring efficient and consistent product handling.
