Liquid Filling Line

Inline liquid filling equipment and packaging machinery

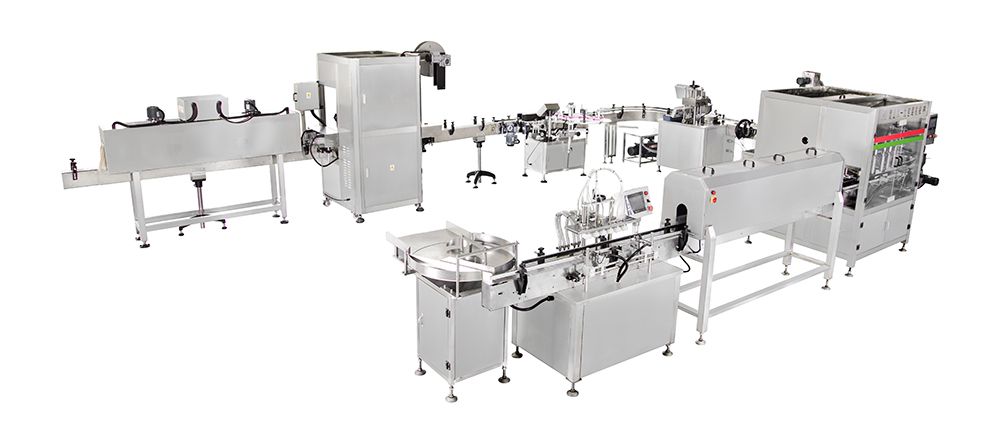

Our liquid filling line stands as an automatic system that offers a comprehensive solution for the filling and packaging of a wide array of liquids. Engineered for efficiency, it integrates an advanced conveying system, filling system, sealing system, and final packaging in one seamless flow. We offer customizable designs tailored to your configuration and parameter preferences.

Liquid Filling Line
  • Filling speed:
    200-2400bph
  • Filling accuracy:
    ≦±1﹪
  • Filling heads:
    2/4/6/8 heads (customizable)
Request a Quote
Applications
Applications
  • Food: Filling and packaging of condiments, oils and fats, and other liquid foods.
  • Beverage: Filling and sealing of juices, milk drinks, and other beverages.
  • Cosmetics: Filling and packaging of perfumes, body washes, and other cosmetic products.
  • Pharmaceuticals: Filling and sealing of oral liquid, medical solution, and other liquid medicines.
  • Daily chemicals: Filling and packaging of detergents, lubricants, and other daily chemical products.
Configurations of Filling Line
Configurations of Filling Line
  • Conveying system: The system carries products from the starting position to the filling machine. Types of conveyors available include conveyor belts, rotary drum, etc. to ensure stable and continuous conveyance.

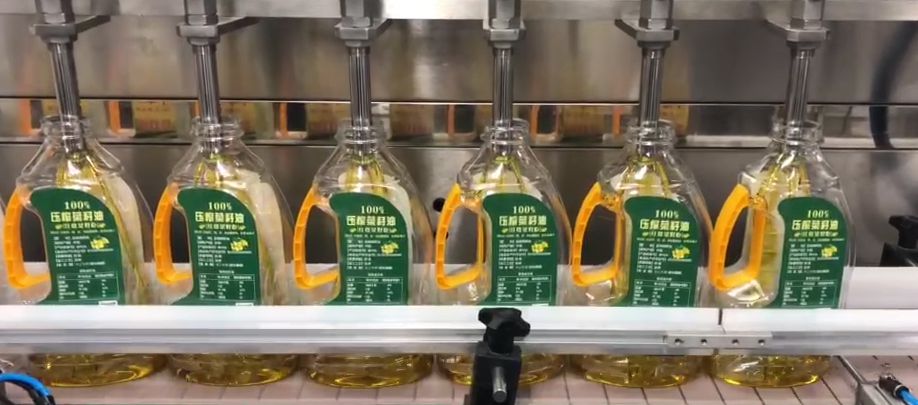

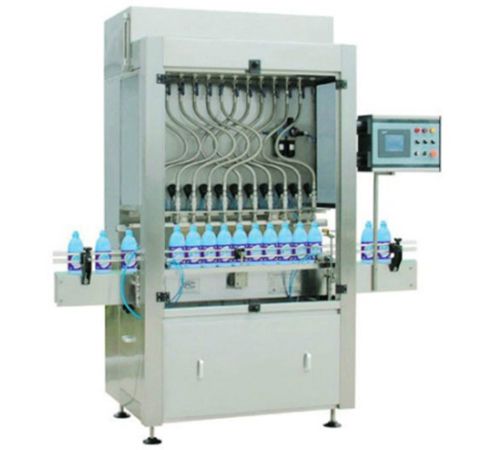

  • Filling system: As the core of the entire production line, the filling system perform filling tasks according to the specific properties and requirements of different products. Various types of fillers, such as gravity fillers, volumetric fillers, are designed with an accurate control system to ensure optimal performance.
  • Sealing system: The system seals products after they have been filled. Heat sealing, cold sealing, and thread sealing are available to meets diverse industry needs, ensuring optimal product preservation and protection.
  • Packaging system: The system places sealed products into various containers like bags or bottles, and then label or stack them for delivery and sales.
Specifications
Power supply 220V /200W
Filling speed 200-2400bph
Filling accuracy ≦±1﹪
Air pressure 0.5-0.7Mpa
Air consumption 0.3-0.8m³/min
Bottle height 90-320mm
Bottle diameter ≥50mm
Filling heads 2/4/6/8 heads (customizable)
Capacity options 5-100ml
30-280ml
50-500ml
100-1000ml
500-2500ml
1000-5000ml
Dimensions 22000×1000×1850mm
